Description

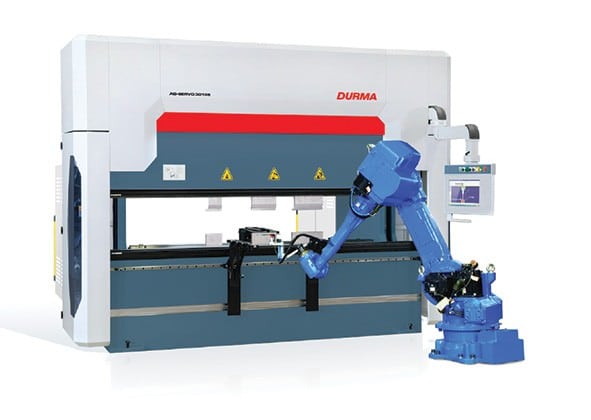

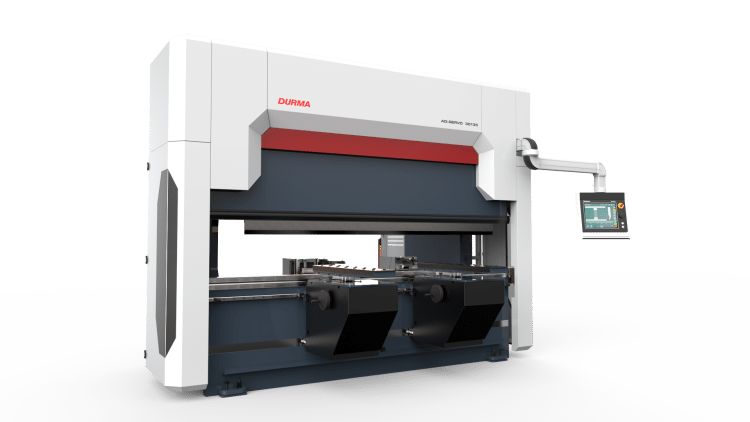

DURMA AD-SERVO Press Brake Series

AD-SERVO Series Press Brakes are designed with modern technology to increase your productivity and contribute to your precise part bending. Energy consumption has an important place and impact on every business. While energy consumption in standard machines constitutes 30% of the production cost, AD-Servo series press brakes with low energy consumption allow great energy savings. Stress-relieving was performed for precise and long-term operation of the machine frames.

Standard Features
  • Stress Relieved Mono Block Frame

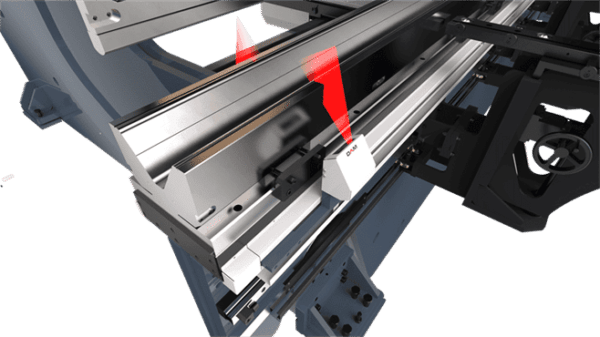

  • Back gauge: Yaskawa AC Servo Motorized & Linear guide & Ball Bearing system
  • CNC controlled motorized Crowning
  • Sliding Front Arms with T-Slot, Tilting stop and full-length linear guide (2 pcs)
  • Protection side covers
  • DBEND 3D CAD/CAM Importing & Simulation OFFLINE license

Services Included:

  • Delivery
  • Installation
  • Operator training
  • CSA Compliance and Inspection
  • 1 Year Manufacturers Warranty on Parts and Labour
Video


DURMA AD-SERVO Press Brake

AD-SERVO Hydraulic Press Brake

  • BUILD YOUR OWN
  • Brand: Durma
  • Series: AD-SERVO
  • Model:
  • Operating Length mm X Metric Ton/U.S. Ton2550X100/110
  • Bending Length100"
  • Between Columns86.6"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power2.8 KW
  • Weight17200 lbs
  • Voltage380-440 V
  • Daylight530 mm
  • Operating Length mm X Metric Ton/U.S. Ton3050x100/110
  • Bending Length120"
  • Between Columns102.3"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power2.8 KW
  • Weight18750 lbs
  • Voltage380-440 V
  • Daylight530 mm
  • Operating Length mm X Metric Ton/U.S. Ton3050x135/149
  • Bending Length120"
  • Between Columns102.3"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power3.6 KW
  • Weight21100 lbs
  • Voltage380-440 V
  • Daylight530 mm
  • Operating Length mm X Metric Ton/U.S. Ton3050x175/193
  • Bending Length120"
  • Between Columns102.3"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power4.5 KW
  • Weight24000 lbs
  • Voltage380-440 V
  • Daylight530 mm
  • Operating Length mm X Metric Ton/U.S. Ton3050x220/242
  • Bending Length120"
  • Between Columns102.3"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power7 KW
  • Weight27800 lbs
  • Voltage380-440 V
  • Daylight530 mm
  • Operating Length mm X Metric Ton/U.S. Ton3050x320/352
  • Bending Length120"
  • Between Columns102.3"
  • Daylight24.8"
  • X Axis Working Speed19.7"
  • Motor Power9.7 KW
  • Weight37700 lbs
  • Voltage380-440 V
  • Daylight630 mm
  • Operating Length mm X Metric Ton/U.S. Ton3750x175/193
  • Bending Length145.6"
  • Between Columns123"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power4.5 KW
  • Weight25900 lbs
  • Voltage380-440 V
  • Daylight630 mm
  • Operating Length mm X Metric Ton/U.S. Ton3750x220/242
  • Bending Length145.6"
  • Between Columns123"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Operating Length mm X Metric Ton/U.S. Ton4050x175/193
  • Bending Length159.4"
  • Between Columns141.7"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power4.5KW
  • Weight28200lbs
  • Voltage380-440 V
  • Daylight530 mm
  • Operating Length mm X Metric Ton/U.S. Ton4050x220/242
  • Bending Length159.4"
  • Between Columns141.7"
  • Daylight20.8"
  • X Axis Working Speed19.7"
  • Motor Power7KW
  • Weight32500lbs
  • Voltage380-440 V
  • Daylight530 mm
  • Operating Length mm X Metric Ton/U.S. Ton4050x320/352
  • Bending Length159.4"
  • Between Columns141.7"
  • Daylight24.8"
  • X Axis Working Speed19.7"
  • Motor Power9.7KW
  • Weight44100lbs
  • Voltage380-440 V
  • Daylight630 mm
  • Operating Length mm X Metric Ton/U.S. Ton4050x400/440
  • Bending Length159.4"
  • Between Columns141.7"
  • Daylight24.8"
  • X Axis Working Speed19.7"
  • Motor Power9.7KW
  • Weight61200lbs
  • Voltage380-440 V
  • Daylight630 mm
  • Operating Length mm X Metric Ton/U.S. Ton4050x600/660
  • Bending Length159.4"
  • Between Columns141.7"
  • Daylight27.5"
  • X Axis Working Speed19.7"
  • Motor Power15.8KW
  • Weight89300lbs
  • Voltage380-440 V
  • Daylight630 mm
  • Operating Length mm X Metric Ton/U.S. Ton6050x320/352
  • Bending Length238.3"
  • Between Columns200.9"
  • Daylight24.8"
  • X Axis Working Speed19.7"
  • Motor Power9.7KW
  • Weight63700lbs
  • Voltage380-440 V
  • Daylight630 mm
  • Operating Length mm X Metric Ton/U.S. Ton6050x400/440
  • Bending Length238.3"
  • Between Columns200.9"
  • Daylight24.8"
  • X Axis Working Speed19.7"
  • Motor Power9.7KW
  • Weight76290lbs
  • Voltage380-440 V
  • Daylight630 mm
  • Operating Length mm X Metric Ton/U.S. Ton6050x600/660
  • Bending Length238.3"
  • Between Columns200.9"
  • Daylight27.5"
  • X Axis Working Speed19.7"
  • Motor Power15.8KW
  • Weight115760lbs
  • Voltage380-440 V
  • Daylight630 mm
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • THROAT GAP DEPTH:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • THROAT GAP DEPTH:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • THROAT GAP DEPTH:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP DEPTH:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • THROAT GAP DEPTH:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP DEPTH:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP DEPTH:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • THROAT GAP:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • THROAT GAP:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • THROAT GAP:
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP :
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP :
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP :
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP :
  • OTHER OPTIONS:
  • SAFETY:
  • CONTROL UNIT:
  • BACKGAUGE:
  • LOADING SUPPORT:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • STROKE:
  • THROAT GAP :
  • OTHER OPTIONS:
