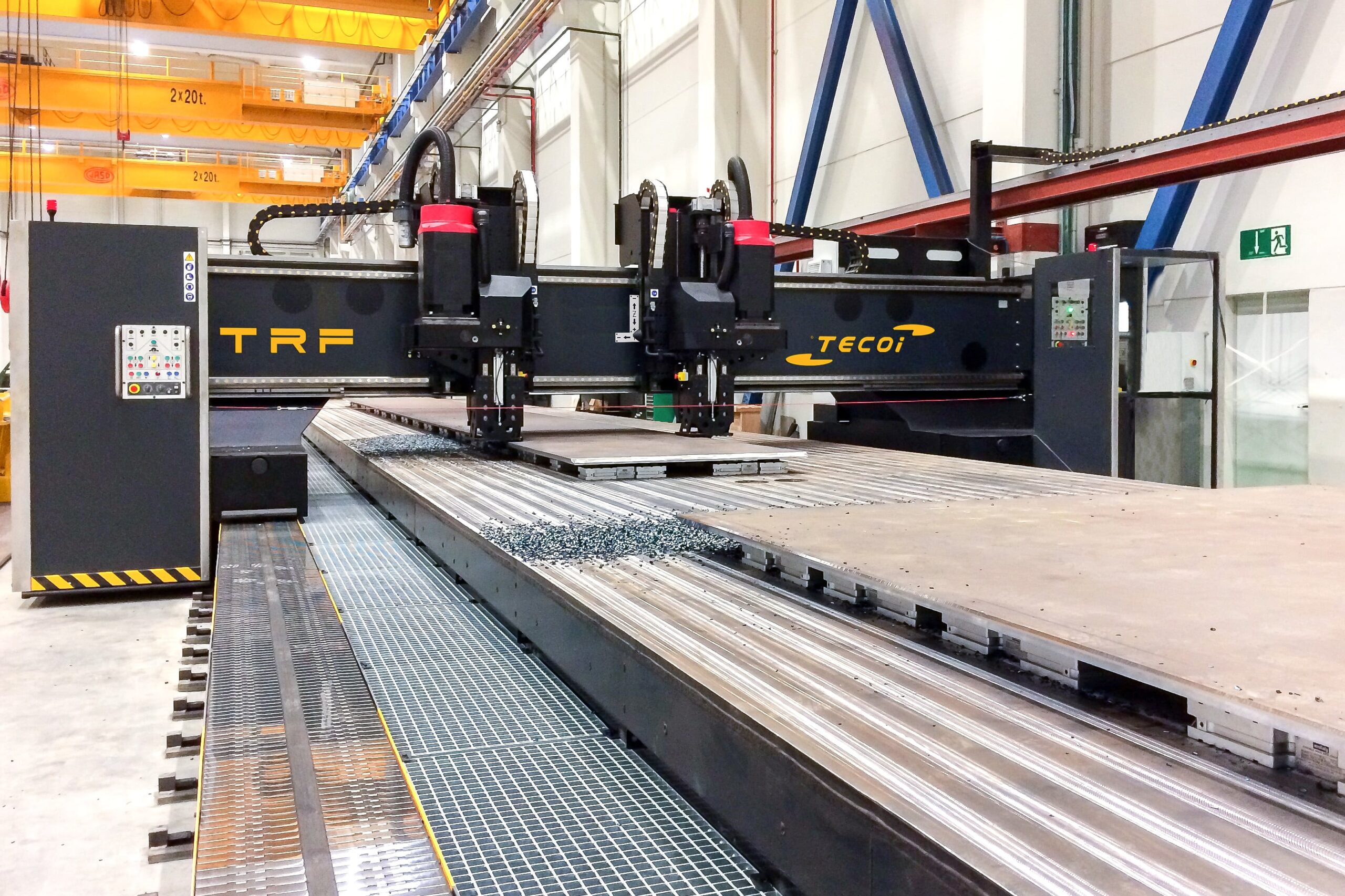

Tecoi TRF Edge Milling for Welding

Description

Tecoi TRF Plasma, Thermal Cutting & Machining

TRF is designed for edge preparation work for welding and drilling in applications where great machining capacity is needed for medium to large thickness boilers.

Standard Features

Useful cutting Y-axis (width) from 3200mm to 5200mm;
Useful cutting length X-axis (mm) from 3000mm to 72000mm;
High resistance magnetic fixing system. Magnet stack of 18 double units, for every 12m of plate to be machined;

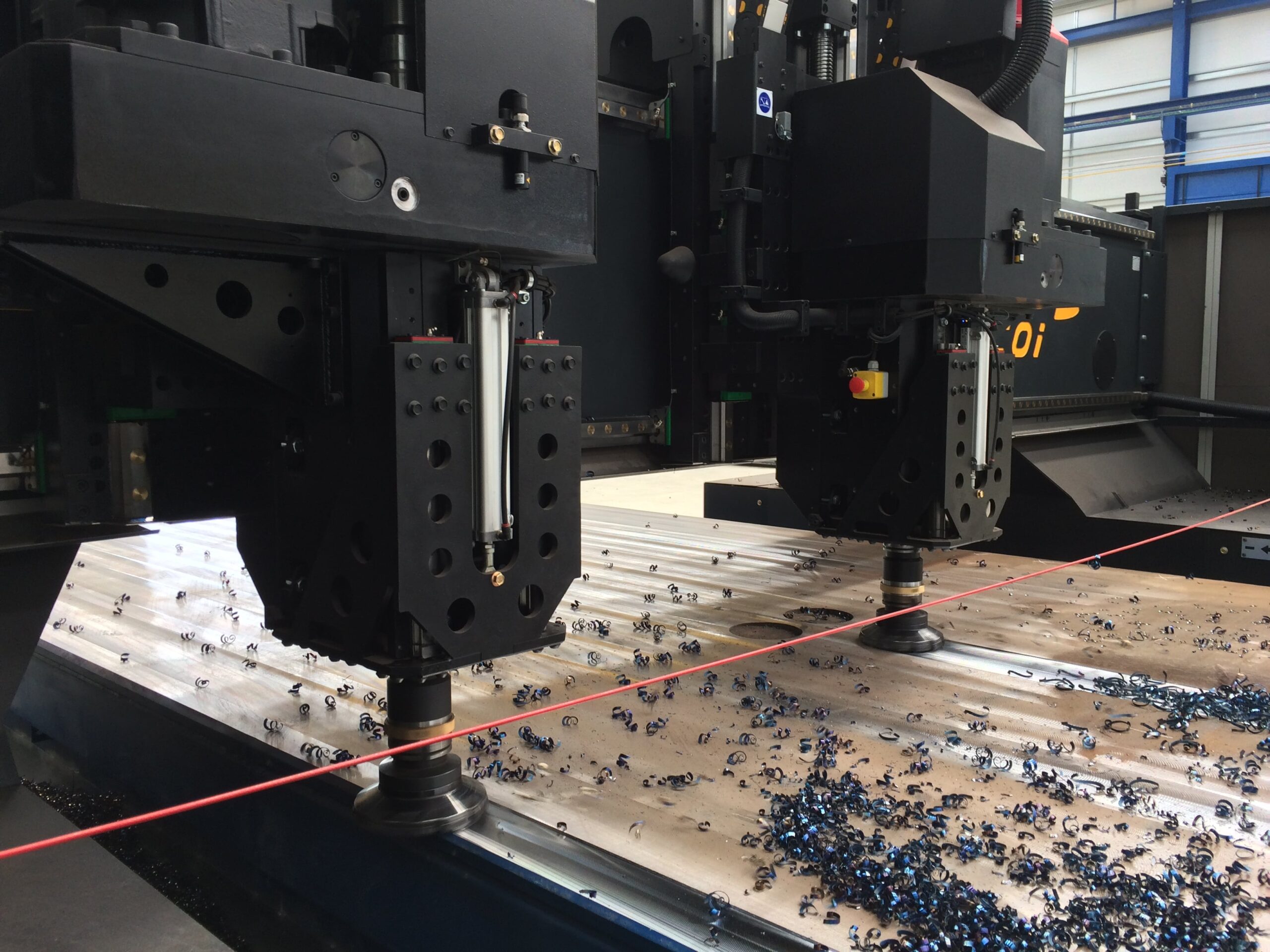

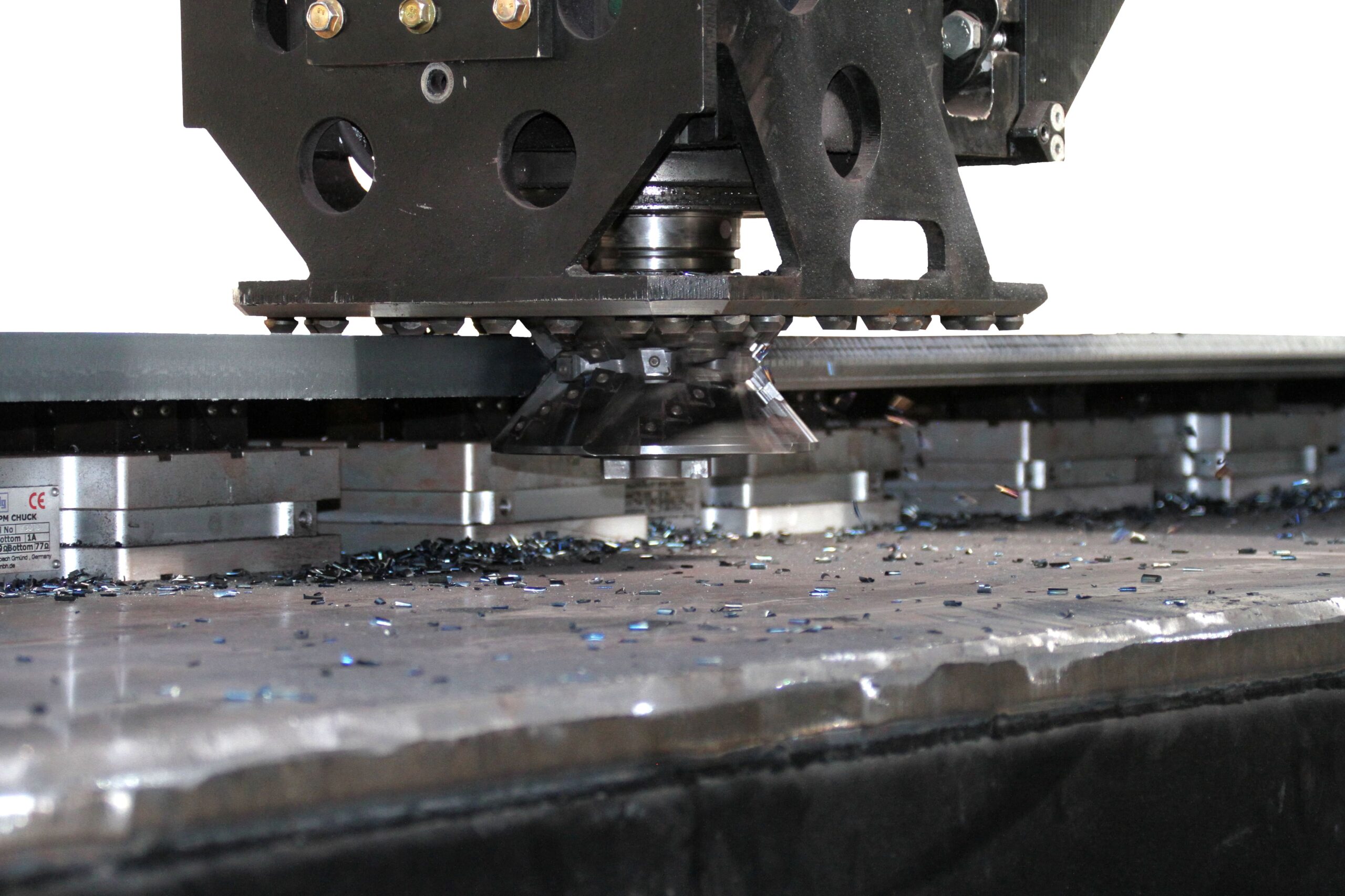

COLD BEVEL MILLING HEAD Up to 2 units – From 30kW to 100kW power;
CBM HEAD PowerDrive (Only available for TRF PowerDrive) Up to 2 units – From 75kW to 115kW power;

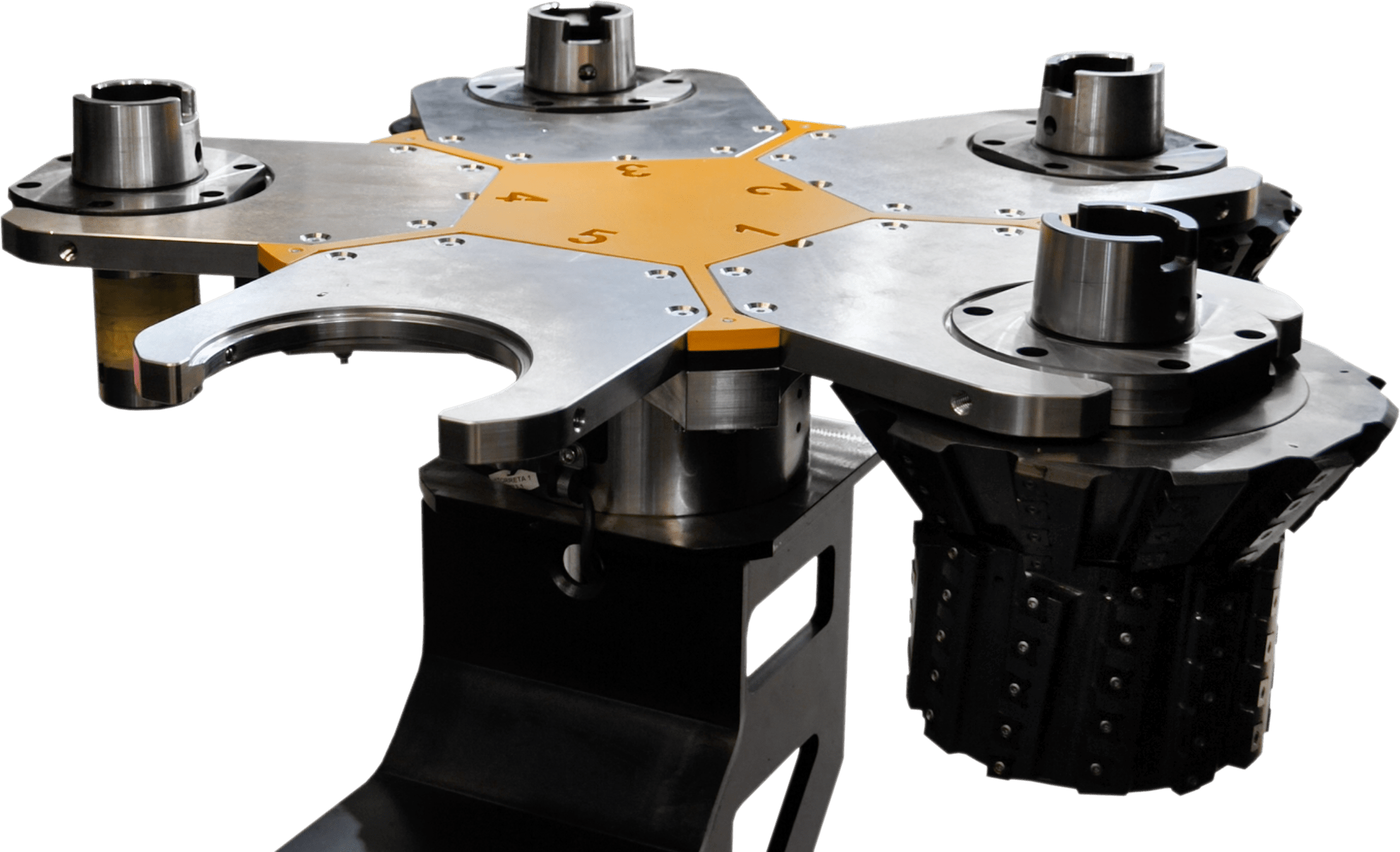

Automatic tool changer. Up to 5 different positions;
Vibratec Debris Removal System ( optional);

Services Included:
