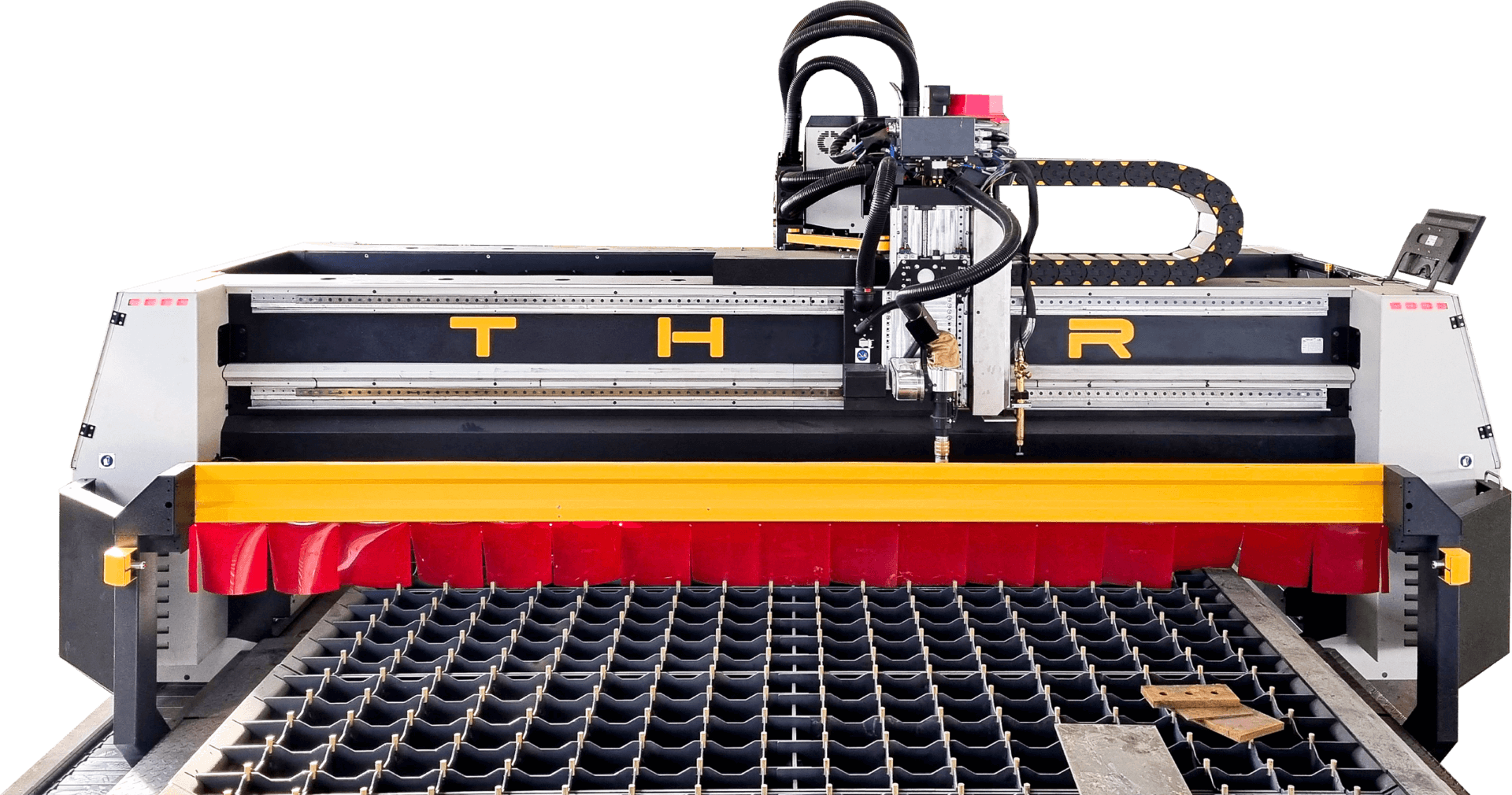

• Working width up to 238” (6.050 mm.).

• Positioning speed 105 ft/min. (32 m/min.).

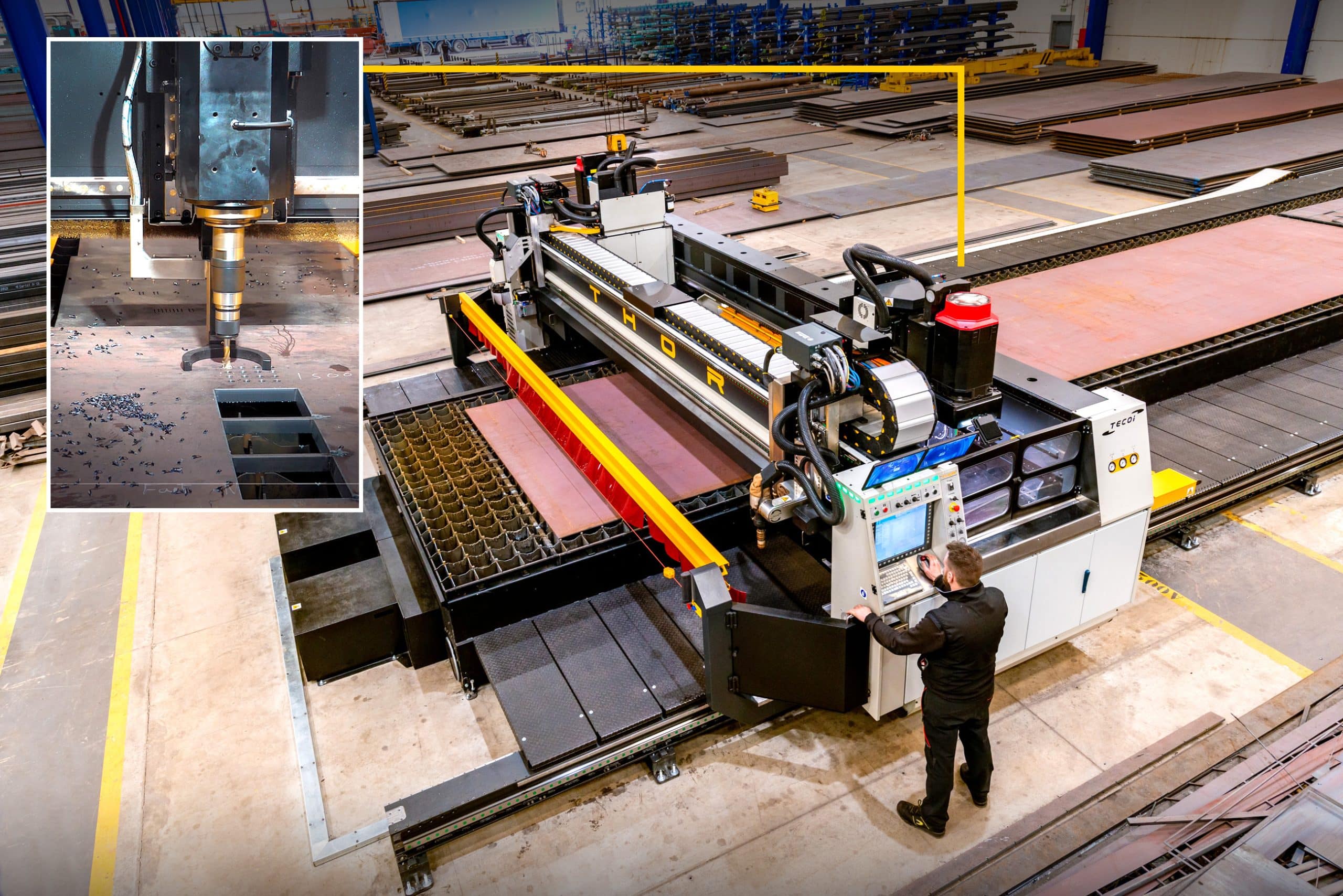

• Exclusive DRILTEC® system for high machining capacity with power of up to 45 kW (S3) and automatic tool changer up to 3.15” (80 mm.) of diameter. (Manual change for larger size tools).

• Tool Magazine Capacity: Up to 32
• Vertical plate clamp around the tool.
• Detection of the upper side of the plates.
• Tool measurement.
• Internal and external double brication by oil micro fog.
• The IMZ (Intelligent Movement Z-axis) system reduces the cutting process time by up to 30%, which means faster and more accurate cutting head positioning on the material.and S.A.C. to minimize the effect of collisions.
• Cutting Head Guide: Roller runner linear motion system
• Gantry Guide: Mechanized rail 52 kg/m. (35 lb / ft)
• Automatic Lubrication
• Max. Number of Cutting Heads: 6/12/16

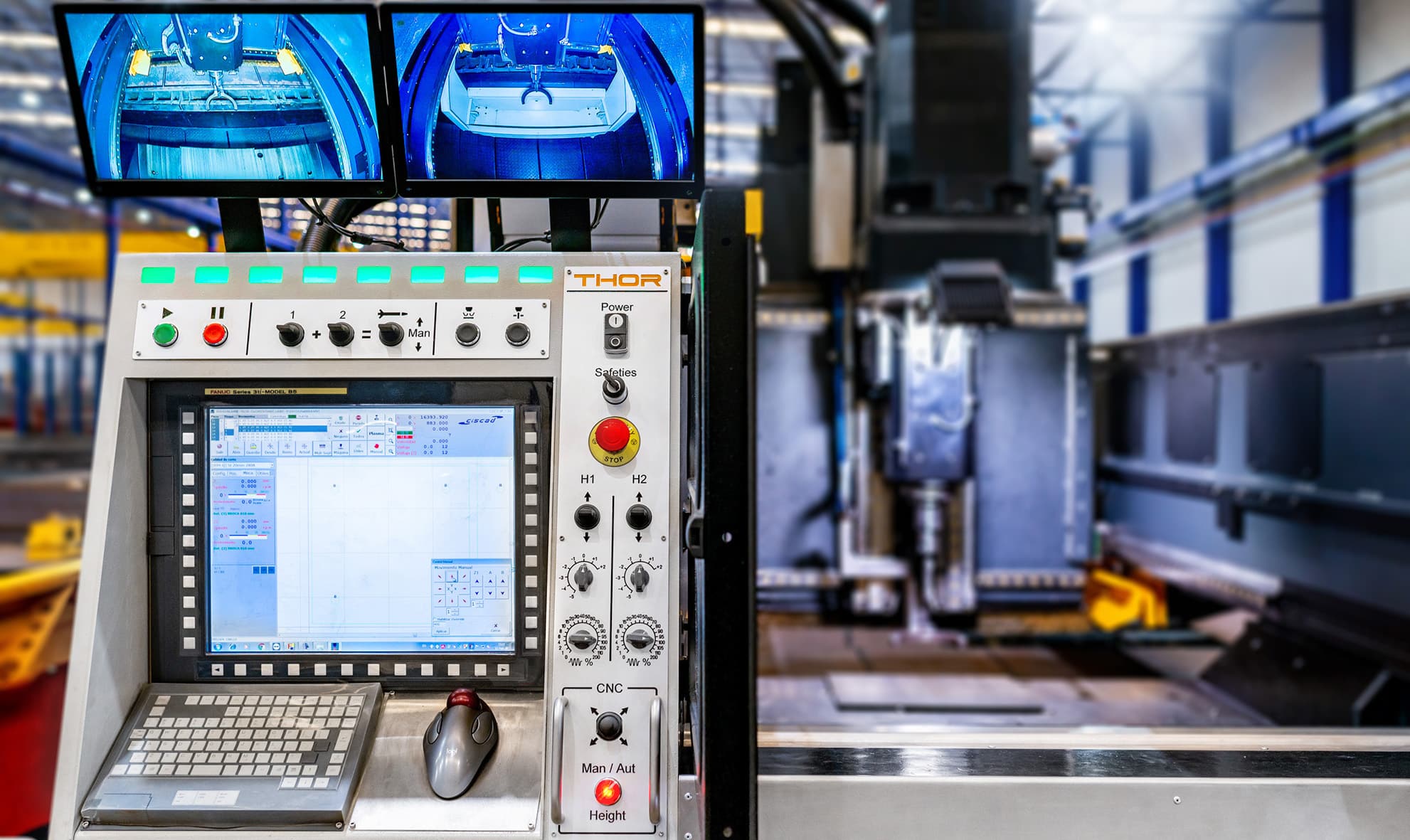

• Control: Fanuc™ series 31 i
• Communication: Ethernet, USB, Optical fiber Motors: Fanuc™ Brushless Absolute encoder

Services Included:

• Independent benches with an innovative support system which adapts to thermal cutting and machining, avoiding tool breakage.
• Incorporated  S.P.C.® system for total control of the drilling
• Delivery
• Installation
• Operator training
• CSA Compliance and Inspection
• 1 Year Manufacturers Warranty on Parts and Labour
