Description

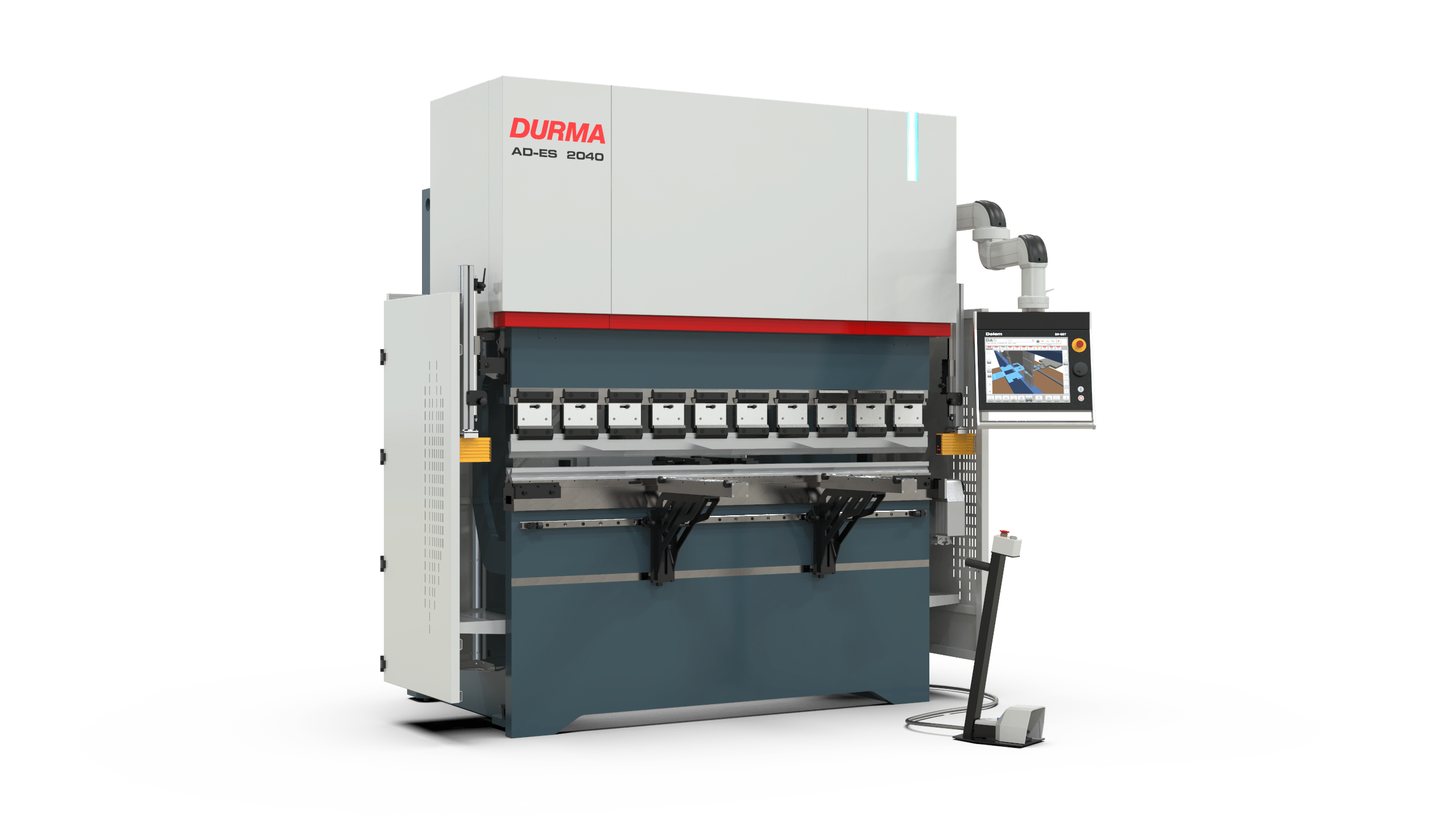

DURMA AD-ES Press Brake Series

The Eco-Friendly Durma AD-ES CNC Electric Press Brake series can be produced from 1250 mm table width to 2500 table width. Different sizes are also possible according to the customer requests. The machine frame is made by welding and all waste is prevented with stress-relieving and suitable processing technologies. The reducer drive system, precise screw shaft and nut connection and high torque strength bearing cylinder ensure high-precision bending results.

Standard Features
  • Back gauge: Yaskawa AC Servo Motorized & Linear guide & Ball Bearing system
  • Sliding Front Arms with T-Slot, Tilting stop, and full-length linear guide (2 pcs)
  • Fiessler Akas LC5 system
  • Protection covers
  • DBEND 3D CAD/CAM Importing & Simulation OFFLINE license

Services Included:

  • Delivery
  • Installation
  • Operator training
  • CSA Compliance and Inspection
  • 1 Year Manufacturers Warranty on Parts and Labour
Video

DURMA AD-ES Press Brake

AD-ES Electrical Press Brake

  • BUILD YOUR OWN
  • Brand: Durma
  • Series: AD-ES
  • Model:
  • Operating Length mm X Metric Ton/U.S. Ton1250x40/44
  • Bending Length49"
  • Between Columns42"
  • Stroke7.80"
  • Daylight17.3"
  • Throat Depth9.80"
  • Approach speed inch/sec4.5 inch/sec
  • Weight7940 lbs
  • Voltage380-480 V
  • Operating Length mm X Metric Ton/U.S. Ton2050x40/44
  • Bending Length80"
  • Between Columns67"
  • Stroke7.80"
  • Daylight17.3"
  • Throat Depth13.70"
  • Approach speed inch/sec4.5 inch/sec
  • Weight9700 lbs
  • Voltage380-480 V
  • CONTROL UNIT:
  • BACKGAUGE:
  • TOP CLAMPING:
  • BOTTTOM CLAMPING:
  • TOOLS:
  • OTHER OPTIONS:
  • CONTROL UNIT:
  • BACKGAUGE:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • OTHER OPTIONS:
