Description

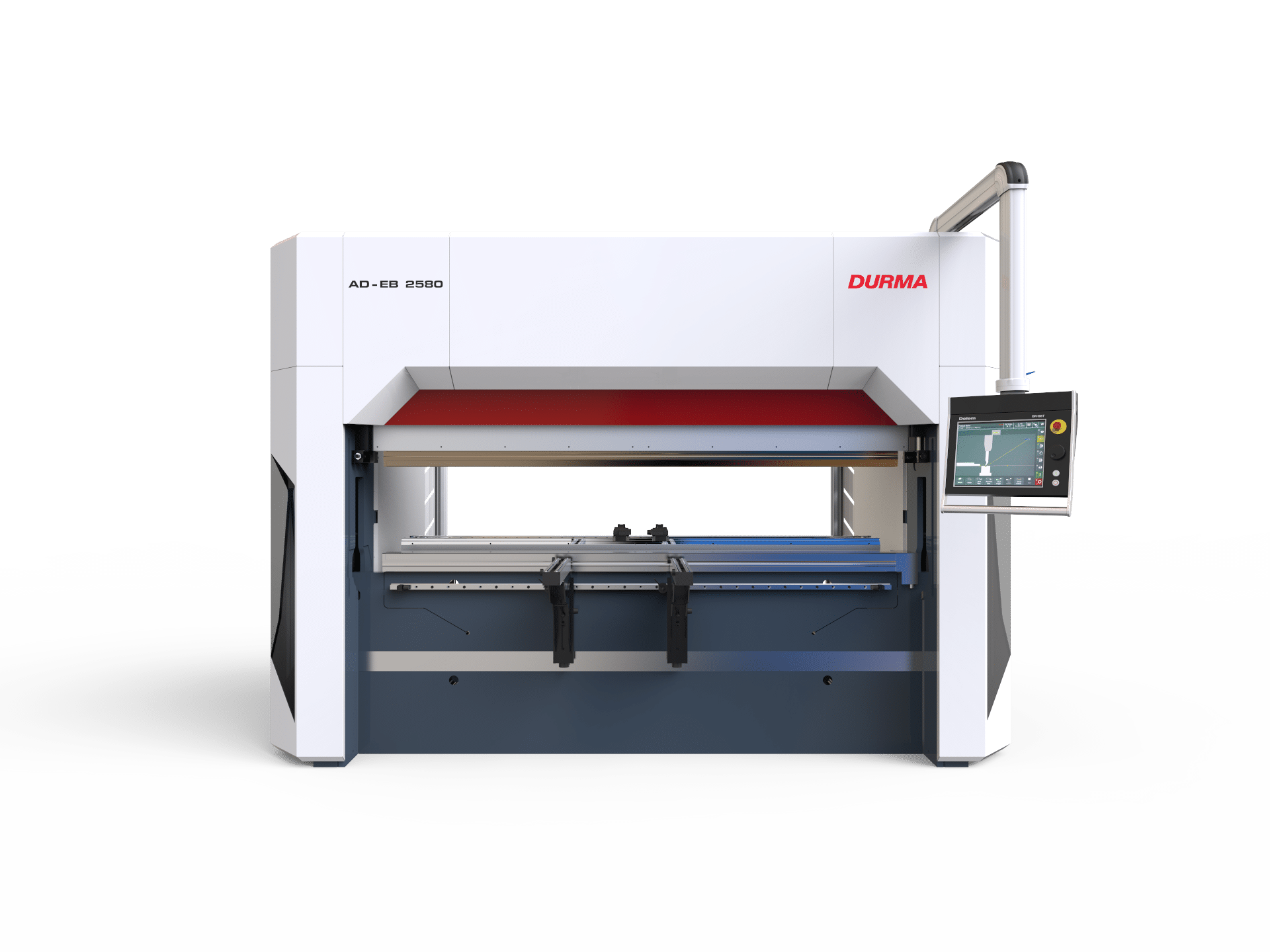

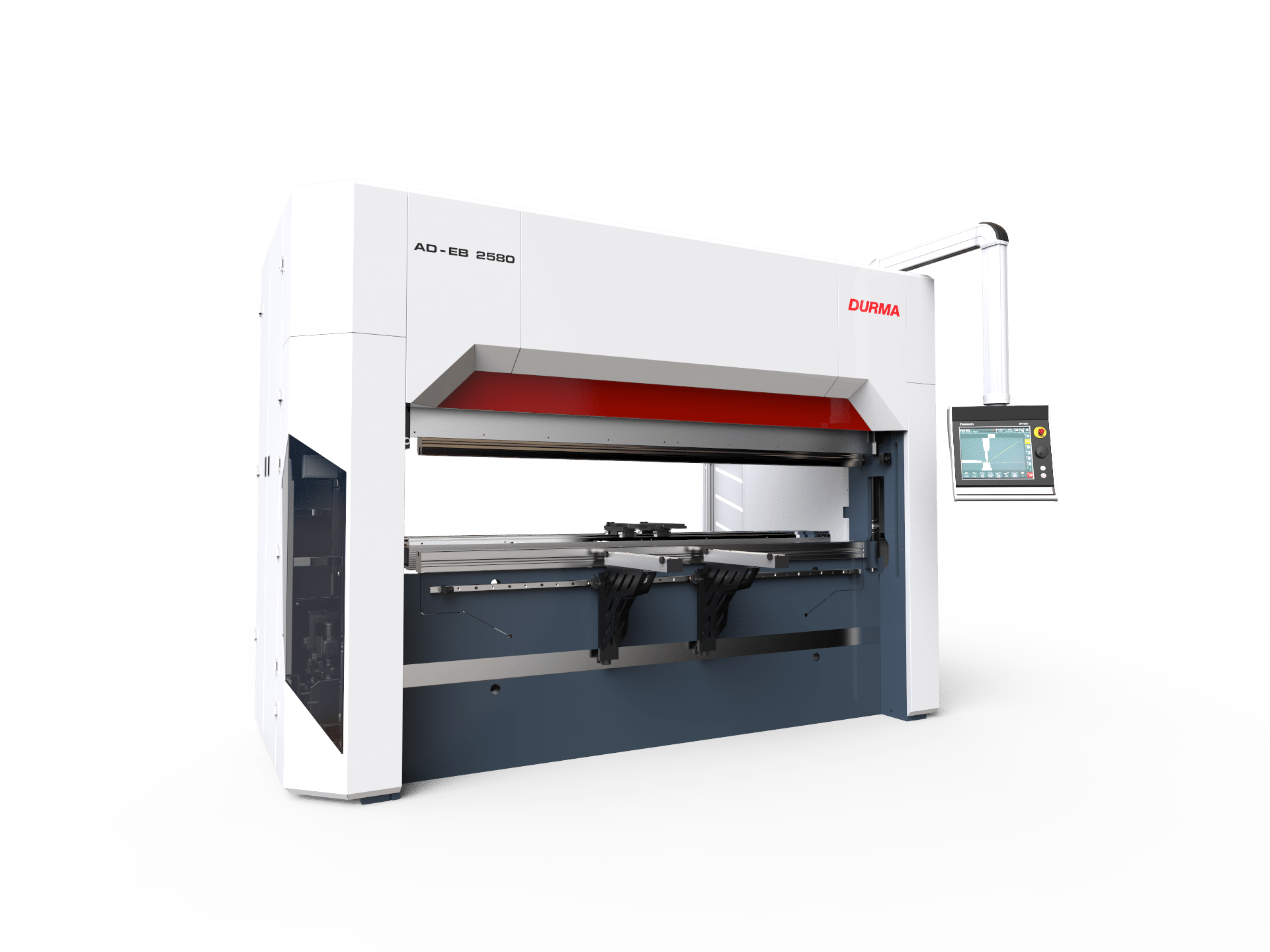

AD-EB Bend Line

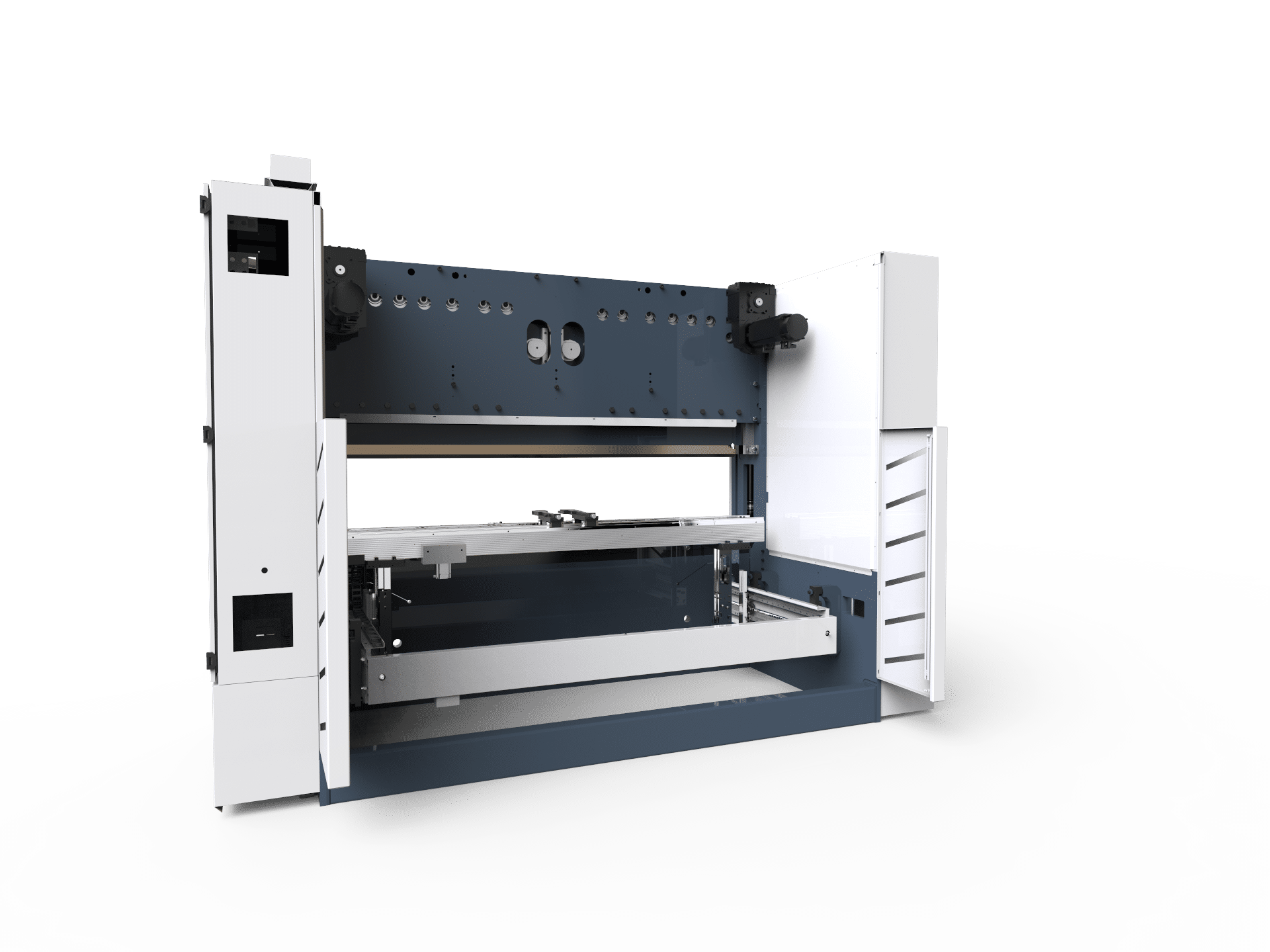

AD-EB has a unique crowning system. Its state-of-the-art frame structure enables crowning during bending and does not require additional parts. The drive system is belt-driven and does not require any hydraulic oil, simplifying maintenance. AD-EB Series also offers high-speed operation by reducing setup and calibration time, resulting in a faster, more accurate, and safer bending process.

Standard Features
  • Back gauge : Yaskawa AC Servo Motorized & Linear guide & Ball Bearing system
  • European Clamping system
  • Fiessler Akas LC5 system
  • Sliding Front Arms with T-Slot, Tilting stop and full length linear guide (2 pcs)
  • Protection covers
  • DBEND 3D CAD/CAM Importing & Simulation OFFLINE license



Services Included:

  • Delivery
  • Installation
  • Operator training
  • CSA Compliance and Inspection
  • 1 Year Manufacturers Warranty on Parts and Labour
Downloadables
Technical Data
Catalogue
AD-EB_EN-8-1.pdf(40.63 MB)
Video

DURMA AD-SERVO Press Brake

AD-EB Bend Line

  • BUILD YOUR OWN
  • Brand: Durma
  • Series: AD-EB
  • Model:
  • Operating Length mm X Metric Ton/U.S. Ton2550x80/88
  • Bending Length100"
  • Between Columns111.8"
  • Stroke12.6"
  • Daylight19.7"
  • Throat Depth19.70"
  • Approach Speed 4.1 inch/sec
  • Motor Power2.8 KW
  • Weight14100 lbs
  • Voltage380-440 V
  • Operating Length mm X Metric Ton/U.S. Ton3050x135/149
  • Bending Length120"
  • Between Columns131.5"
  • Stroke12.6"
  • Daylight19.7"
  • Throat Depth19.70"
  • Approach Speed 3.9 inch/sec
  • Motor Power2.8 KW
  • Weight16,100 lbs
  • Voltage380-440 V
  • CONTROL UNIT:
  • BACKGAUGE:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • OTHER OPTIONS:
  • CONTROL UNIT:
  • BACKGAUGE:
  • TOP CLAMPING:
  • BOTTOM CLAMPING:
  • TOOLS:
  • OTHER OPTIONS:
